XFlow is a particle-based Lattice Boltzmann technology solver for high fidelity Computational Fluid Dynamics (CFD) applications as a part of SIMULIA’s Fluids Simulation portfolio. XFlow offers multiphase and moving parts modeling capabilities specially focused on lubrication workflows such as gearboxes and electric motor drives.
XFlow’s automatic lattice generation and adaptive refinement capabilities minimize user inputs thereby reducing time and effort in the meshing and pre-processing phase of a typical CFD workflow. This enables engineers to focus the majority of their efforts on design iteration and optimization, rather than the time consuming meshing process.
With XFlow’s discretization approach, surface complexity is also not a limiting factor. The underlying lattice can be controlled with a small set of parameters; the lattice is tolerant to the quality of the input geometry and adapts to the presence of moving parts.

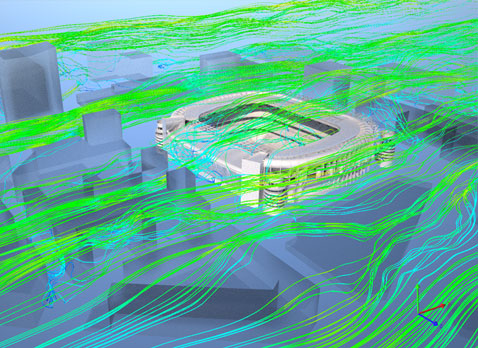

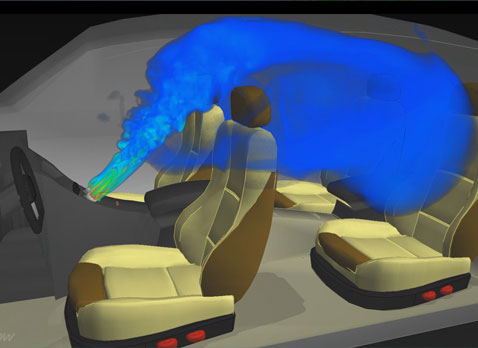

In addition, advanced rendering capabilities provide realistic visualization to gain deeper insight into flow and thermal performance. XFlow’s unique capabilities enable companies to reduce physical testing while making to make better design decisions faster.
Highlights

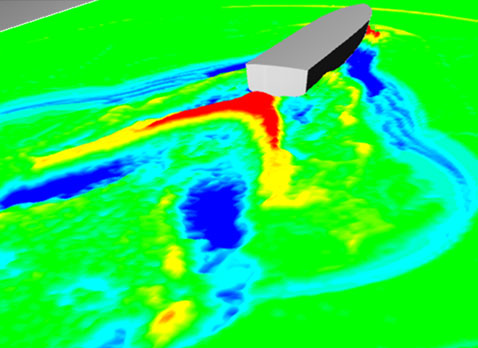

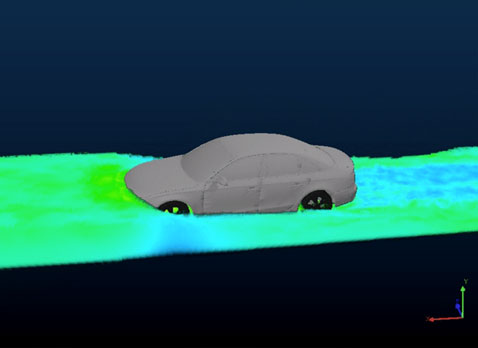

- Single phase flow model, Free-surface flow model, Radiation Montecarlo model
- Multiphase flow models: Particle-based tracking, Phase Field and VoF
- Conjugate Heat Transfer (CHT) boundary condition
- Scalar transport
- Discrete Phase Model (DPM)
- Non-Newtonian flows
- Advance boundary conditions, including porous media and fan model
- Moving parts with enforced behavior, Moving parts with rigid body dynamics up to 6 degrees of freedom
- Fluid-Structure Interaction (FSI) with Abaqus, Simpack and FMU
- Acoustics analysis, Thermal analysis, Vibroacoustics analysis with Wave6
